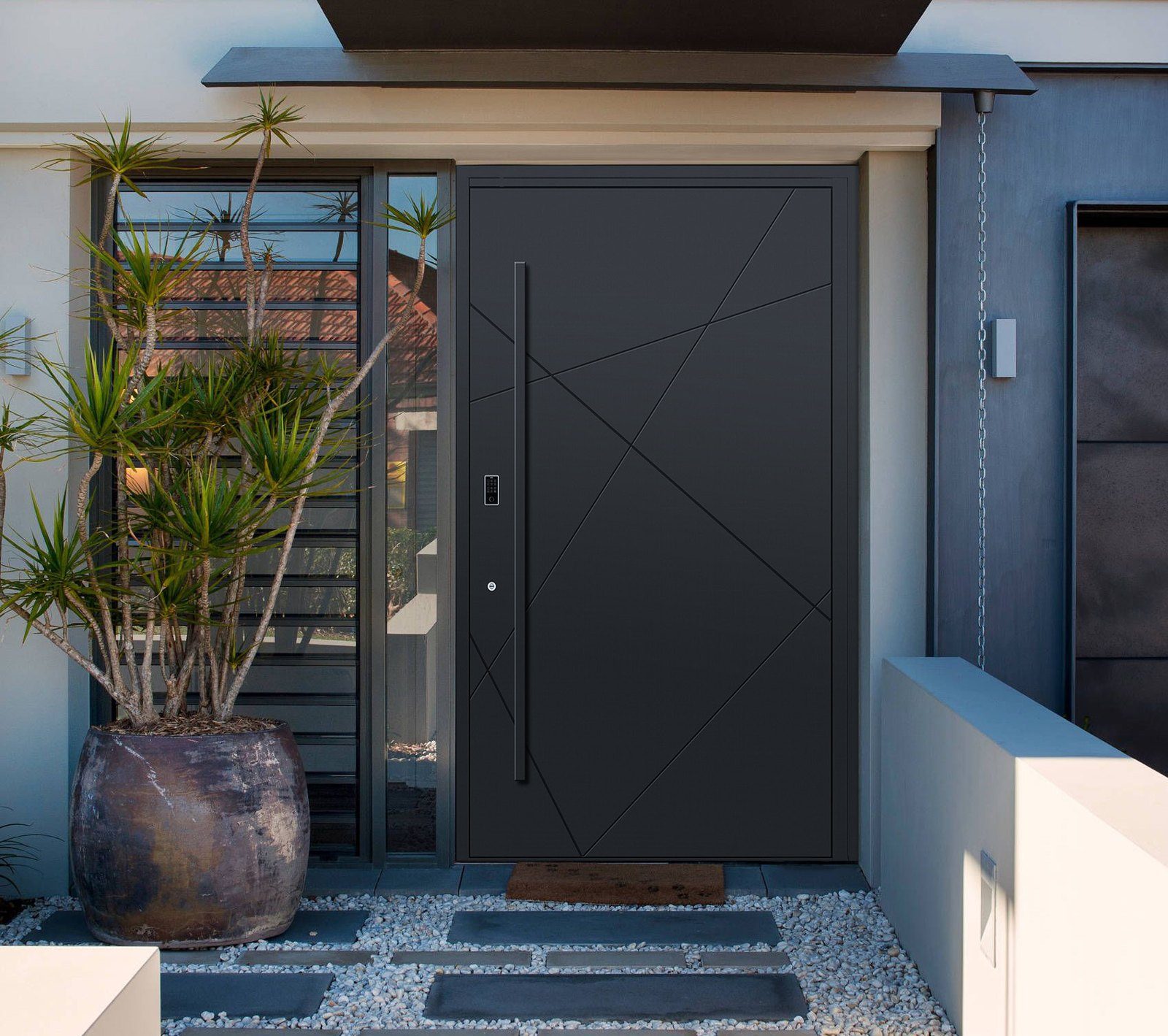

A slim-frame hinged door built to sit inside a slimline glazed wall without breaking the rhythm of the mullions. Multi-point locking, flush thresholds available on request.

A flush frame-to-sash design that removes the step you normally see between frame and leaf, so the unit sits quietly in a contemporary elevation. Concealed hinges carry the weight without a visible knuckle. Figures shown are for the fixed lite; operable-lite ratings are listed in the specification table.

An outward-opening casement on the slimline platform. Because the sash swings out, nothing intrudes on the room, and the narrow frame keeps the opening reading as glass. A practical pairing with fixed slimline units in long window runs.

A lift & slide door on a concealed track, engineered so the running gear is hidden in the floor and head. Handle down lifts the panel for near-frictionless travel; handle up drops it onto its seals. Roller assemblies are serviceable without removing the panel.

An all-aluminum corner unit with no vertical post at the junction, on the narrow-frame 80 platform. Fixed or with an operable leaf on one side; used to open a corner room to two aspects at once.

The heavy-duty aluminum lift & slide, for panels beyond the size and weight range of the standard system. Reinforced interlocks and upgraded carriages keep operation smooth at maximum leaf size.

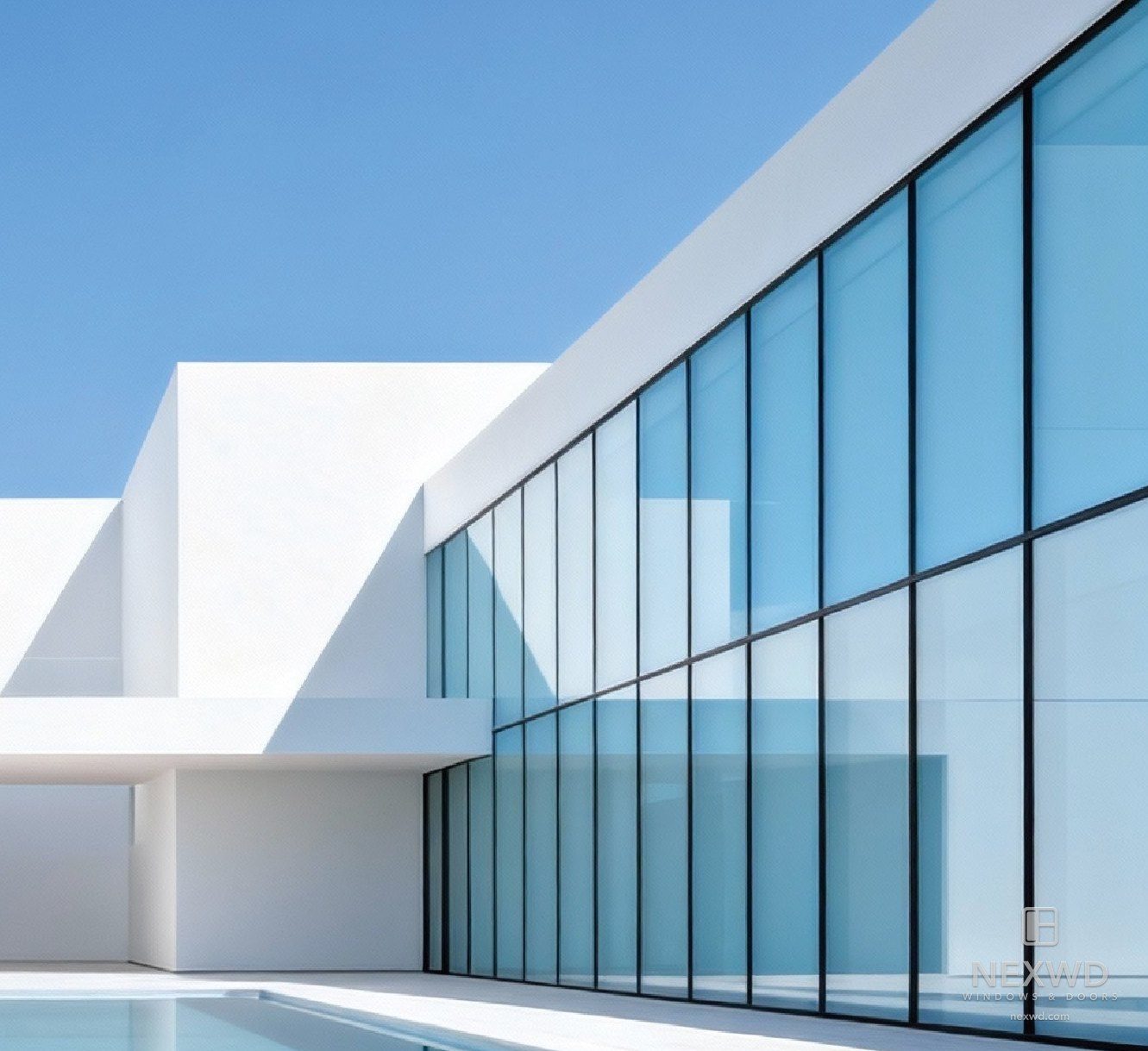

A residential-scale window wall with minimal mullion faces, for full-height glazed elevations. Fixed lites, vents and door leaves share the same sightline, so a whole elevation can be drawn as one system rather than assembled from separate products.

A multi-track sliding wall: several large panels stack or pocket away so the opening clears almost completely. Track configurations are drawn to your plan, including pocketing into the adjacent wall where the framing allows.

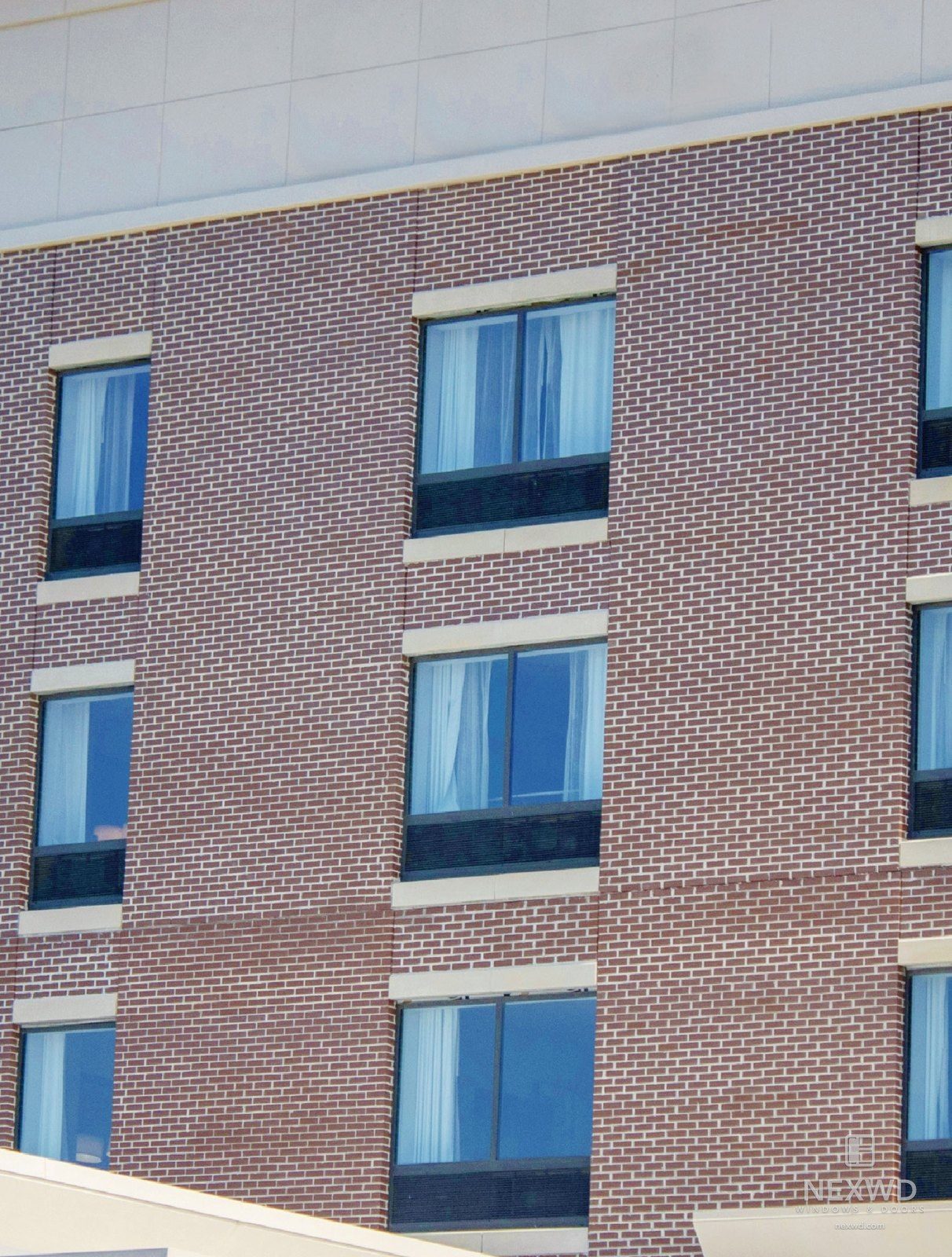

A window built around a through-wall PTAC unit: a glazed lite above, a louvred section below, and an interior opening sized to take the air-conditioner chassis. It is the detail that decides whether a hotel or multifamily elevation reads as designed or as an afterthought with a grille cut into it. Specified where durability in a harsh climate and sound control matter as much as the sightline — in a guest room the acoustic performance is what the occupant actually notices.

A pre-assembled impact window wall shipped as finished cassettes, which cuts the volume of site glazing work on a coastal high-rise or multifamily envelope. Reinforced framing and multi-layer laminated impact glazing throughout, with unit sizes drawn to the floor-to-floor dimension. Tested to the Florida Building Code TAS protocols; approvals vary by jurisdiction, so send us the project location and we will confirm what applies there.

A folding door that concertinas its panels to one or both sides, clearing the opening almost entirely. Top-hung running gear carries the weight so the floor track stays low, and EPDM weather seals with a thermally broken frame keep the closed position tight.

Built for high-risk hurricane exposure — southeastern coastlines and island projects. The frame is reinforced and the glazing is a multi-layer laminated and tempered build-up designed to stay in the opening after a large-missile strike, so the envelope keeps its integrity and the interior stays pressurised as designed. Tested to the Florida Building Code TAS protocols; approvals are jurisdiction by jurisdiction, so tell us where the project is and we will confirm in writing what this unit is approved for there before you specify it.

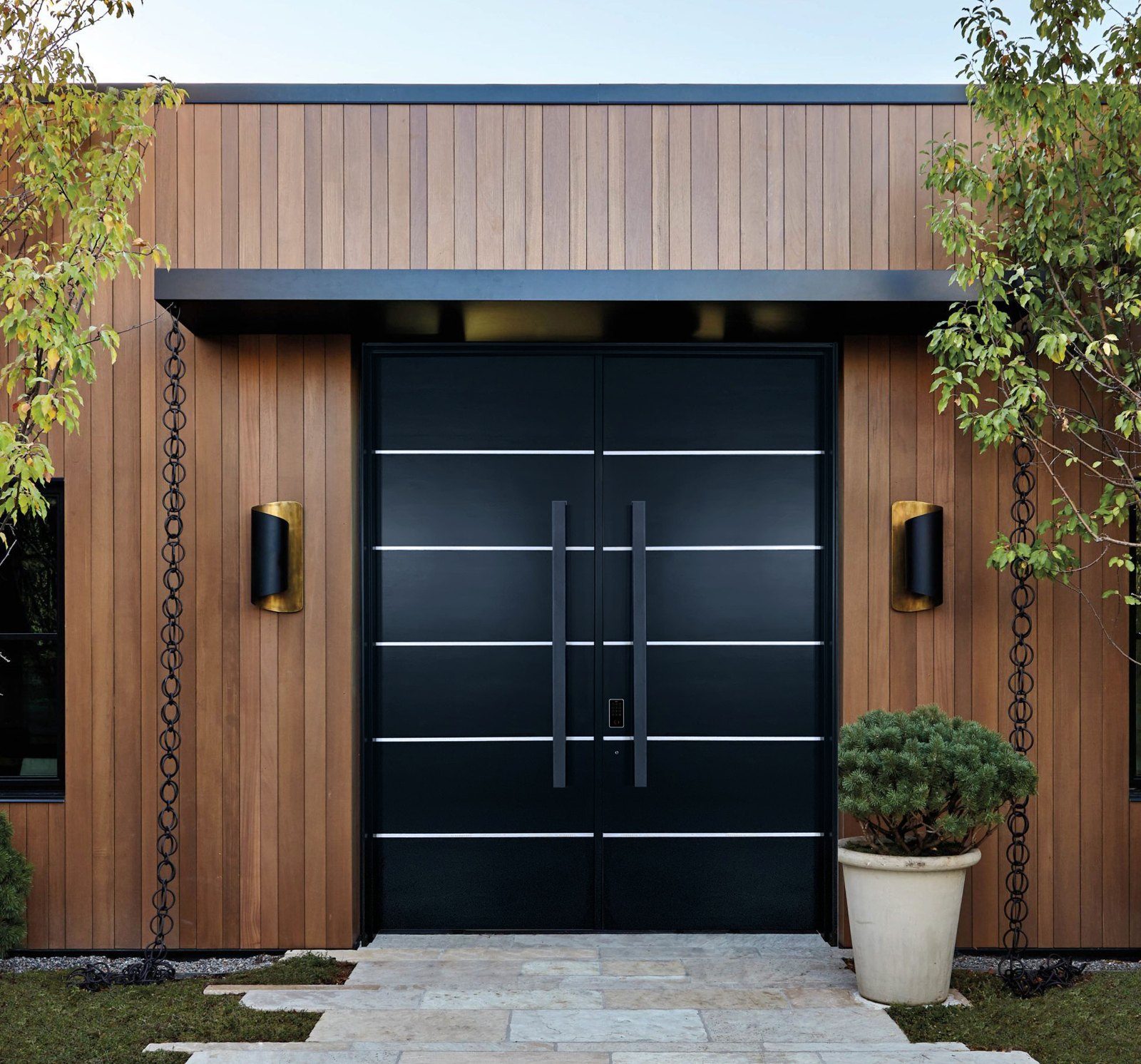

A made-to-drawing aluminum entry door. Panel layout, machining, glazing apertures and hardware positions are set from your elevation, so the front door can be detailed as a designed element rather than chosen from a stock range.

A pivot-hung entry door: the leaf turns on a floor and head spindle set in from the jamb, which is what allows a very large, very heavy door to swing with a light push. Insulated core, machined aluminum faces, and oversized heights available for double-height entries.

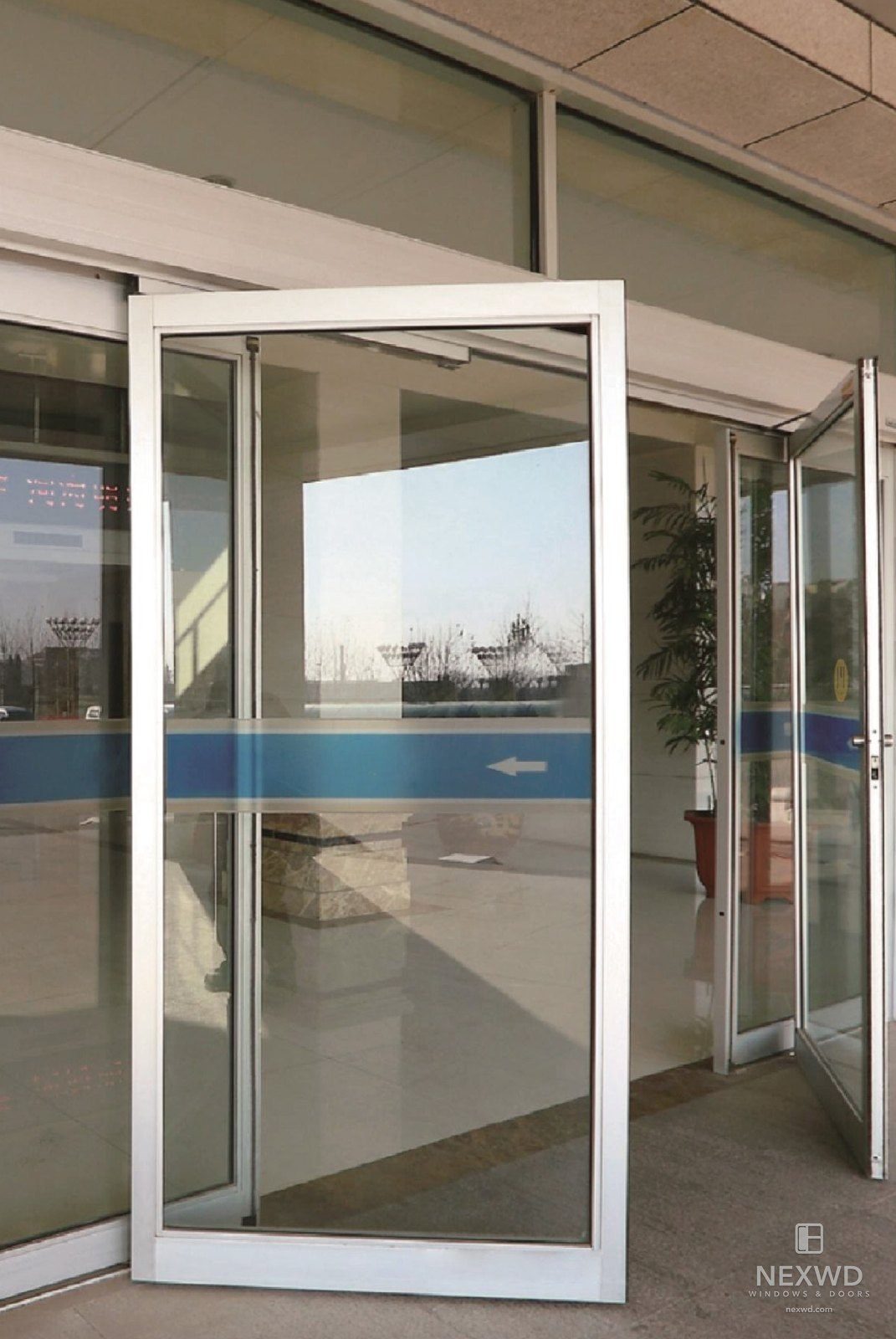

A commercial-duty hinged aluminum door for entrances that see continuous traffic. Reinforced corners and heavy hardware preparation; panic hardware, closers and access control can be specified and prepped at the factory.

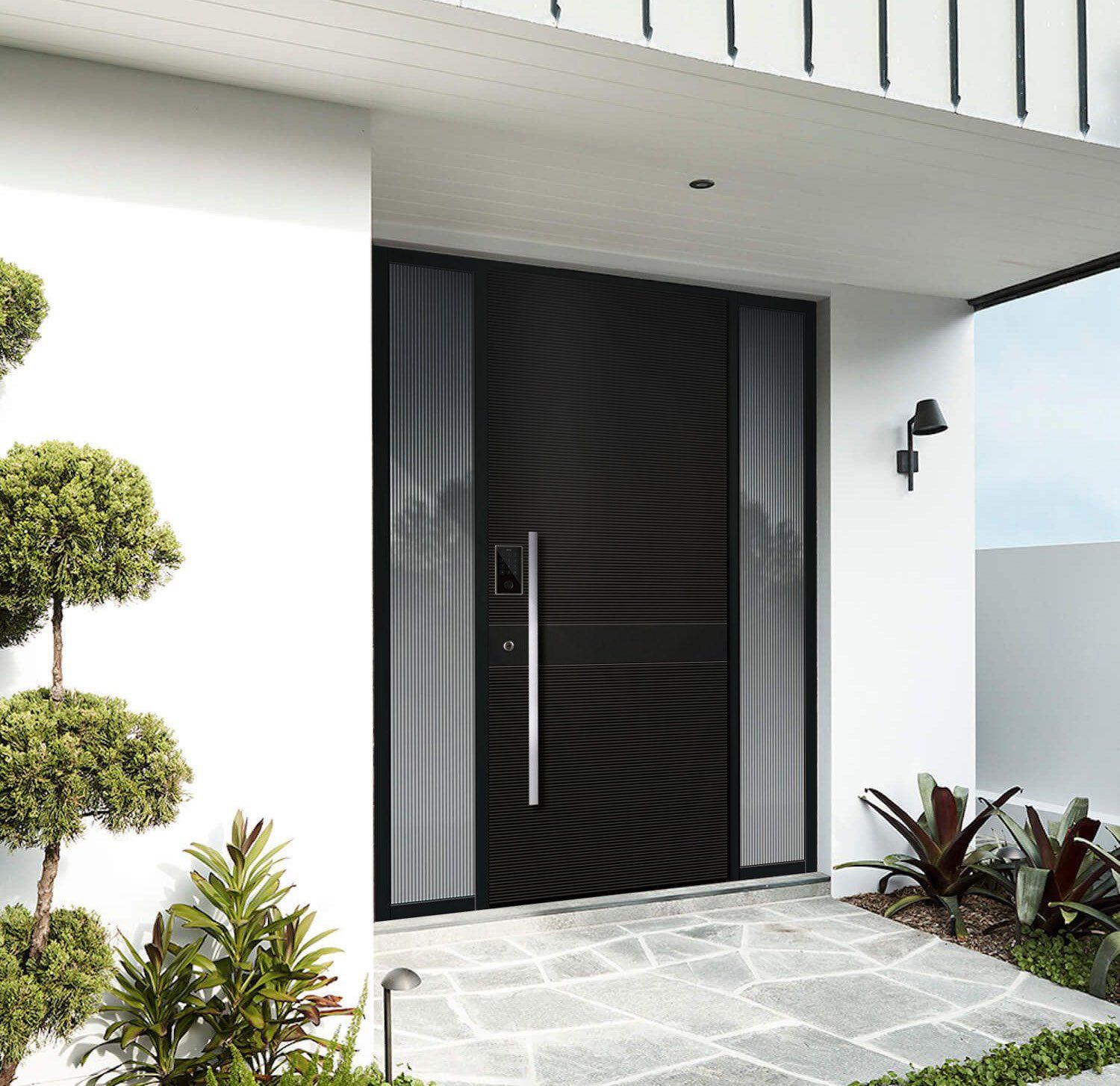

A insulated aluminum entry door with a carved panel face and a phenolic core, built for security and thermal performance at a production price point. Twelve standard colours. Performance figures for this door are converted from European test data — see the note in the specification table.

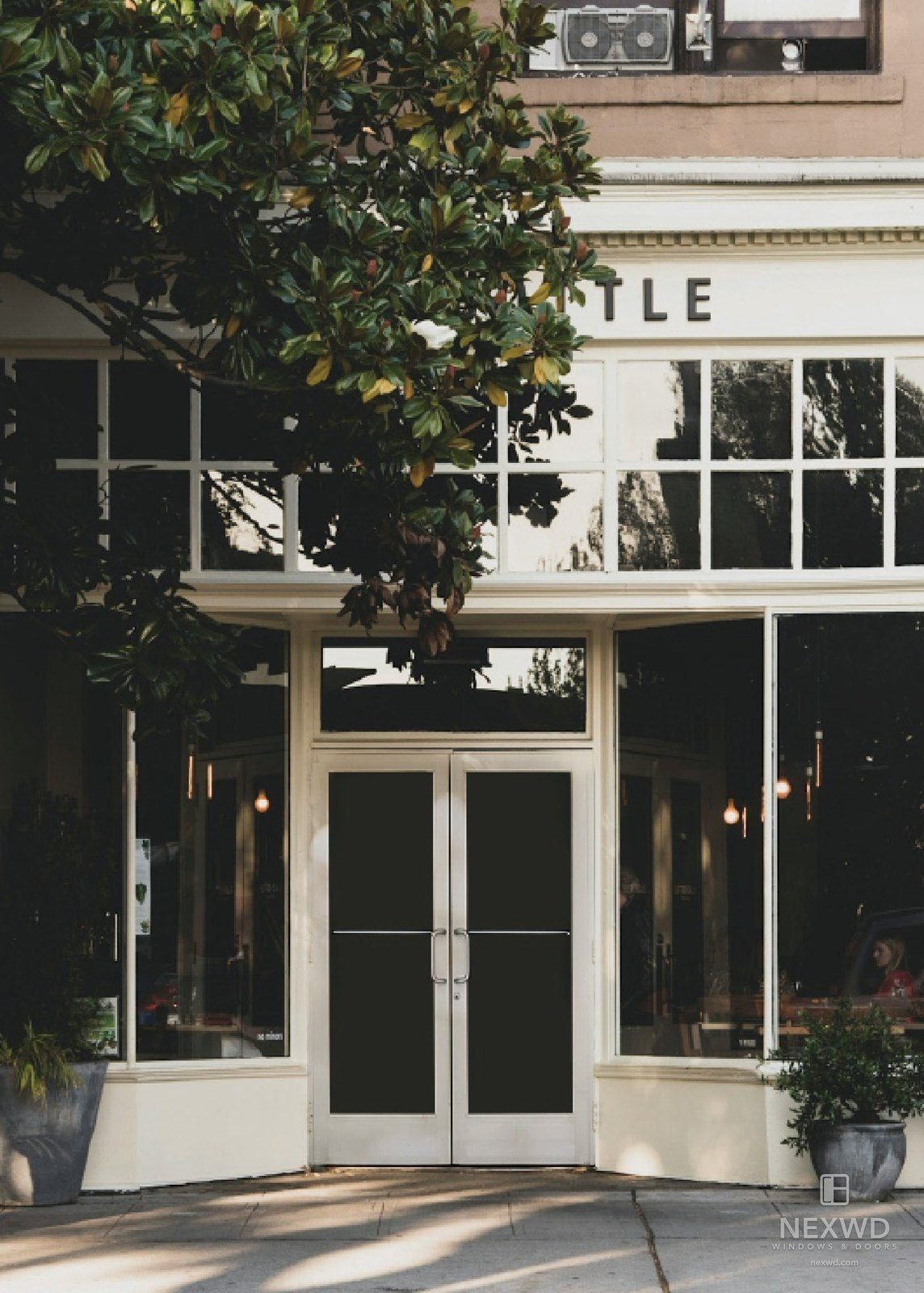

A ground-floor storefront system for retail and mixed-use frontage: framed glazed bays with door openings, detailed for street-level exposure and tenant signage. Drawn to the bay module on your elevation.

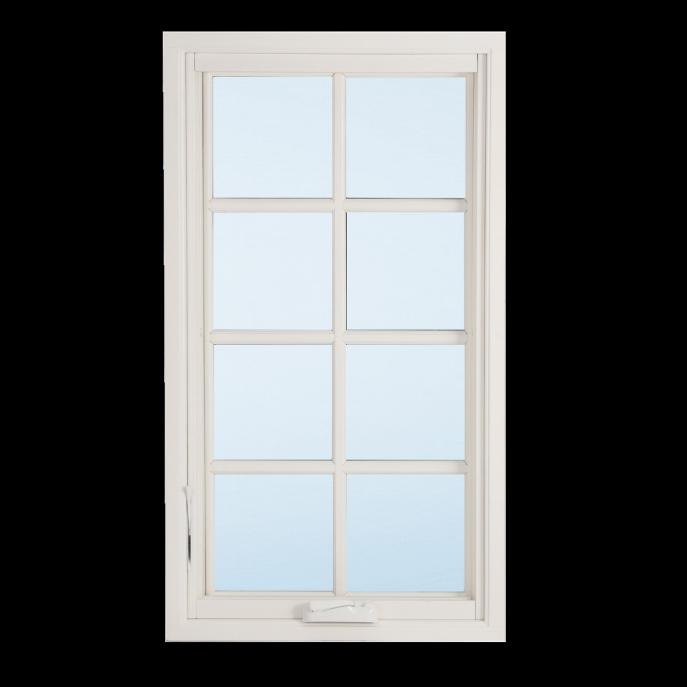

The American crank-out casement, built in aluminum: a familiar rotary operator and hinge geometry, so it reads and works the way a US crew and a US homeowner expect, with the thermal numbers of a modern thermally broken frame. Twin-casement and push-out configurations, three screen types, EPDM spacer.

Two glass planes meeting at a corner with no post between them. Built on the wood-clad E80 platform, it turns a building corner into an uninterrupted view — the structural work moves into the head and sill so the sightline stays clean. Suited to primary living spaces and stair landings where the corner is the feature.

The narrow-frame version of our wood-clad tilt & turn: a sash that sits flush to the exterior and a shallower jamb, which makes it a straightforward choice for frame-in-frame replacement where the existing opening cannot grow. Taller units are available than on the standard frame, so you keep glass area without widening the rough opening.

A crank-operated casement built on our deepest wood-clad platform. The interior is real wood in your choice of species and finish; the exterior carries an AAMA-verified powder-coat cladding warranted against chalking and fading for 20 years. Duplex glazing bars are available to read as true divided panes from both sides.

A dual-action window with a solid wood interior and an extruded aluminum exterior. Tilt the sash in for secure background ventilation, or turn it fully in for cleaning and egress-width airflow. Concealed multi-point hardware keeps the operation light even at the top of the size range, and the warm interior face is finished to match your millwork.

A hinged terrace door that matches the wood-clad window platform pane-for-pane, so a door in a window run reads as part of the same composition. Multi-point locking, an aluminum weather face outside and a wood face inside.

A heavy-duty lift & slide door for large wood-clad openings. Turning the handle lifts the panel clear of its seals onto the carriage, so a very large, very heavy leaf moves with one hand; dropping it back compresses the weather seals for a tight close. For rooms where the opening is the architecture.

A solid timber entry door, built up in a stable engineered core and faced in your chosen species so the grain reads as one piece across the leaf. For traditional and transitional elevations where the entrance is expected to feel like joinery, not extrusion.

A commercial automatic sliding entrance for lobbies, restaurants, healthcare and conference frontage, where touchless access matters and the door is the first thing every visitor touches — or does not have to. Single or bi-part slide, ADA compliant, with motion sensors and safety edges. The panels break out and swing open on power failure, so egress does not depend on the motor, and manual override is available at any time. Rapid open and close limits air exchange, which keeps lobby temperatures and HVAC load under control on a high-traffic door. Specified for interior or exterior openings, glazed single-pane, insulating or laminated.

A hinged aluminum terrace door on the Essential platform, in two frame depths that match their sibling windows for sightline and finish. 95mm (Builder’s Choice) ships with KNG hardware standard, GU + Da ji + HOPPE as an upgrade. 70mm (High Performance) ships with Roto or Siegenia hardware. Multi-point locking as standard on either depth.

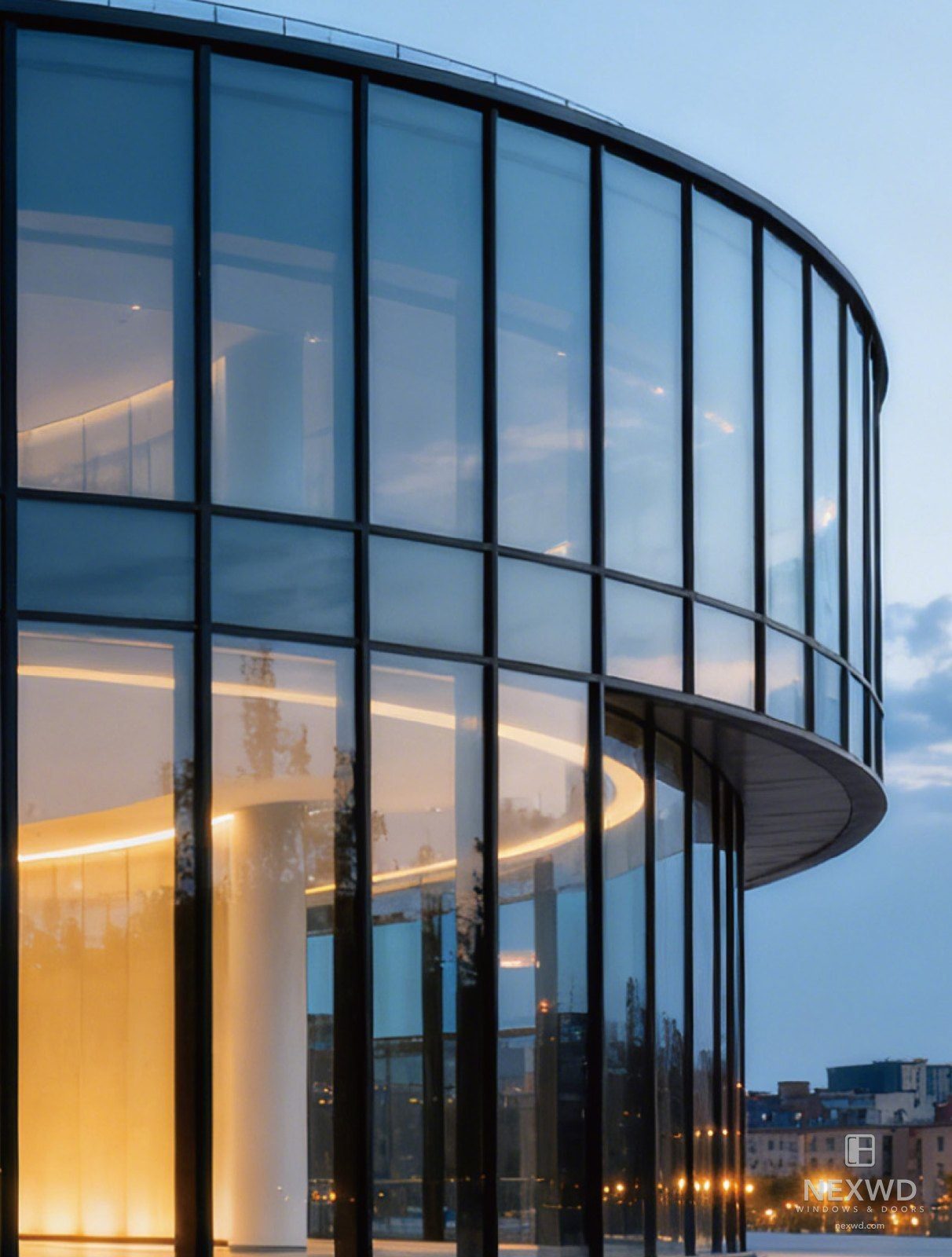

Our commercial window wall range, in three mullion depths that trade sightline for wind load and span. 120S is the entry point at a 4 3/4" mullion depth, sized for low-rise commercial and podium levels up to 105 mph / 14’. 150S steps up to 5 7/8" for mid-rise elevations, taking greater wind load and span up to 120 mph / 24’ — its face width is 2 9/16" against 120S’s 1 15/16", so stepping up in depth does show on the elevation. 180S is the deepest at 7 1/8", for high-rise and high-wind elevations up to 135 mph / 65’, at the same face width as 150S so a tower can step up in structural capacity without a visible change in the facade grid. All three take casement, tilt & turn, awning and door elements on one sightline, glazed with pressure plates; U-factor and SHGC vary with the glazing or panel specified.

An outward-opening casement on the Essential platform, in two frame depths. 95mm is the standard depth — nothing swings into the room, which frees up furniture placement and usable floor area in compact plans; a hydraulic damper is available to stop the leaf being caught by wind, and retractable screens roll out of sight when not in use. 70mm is the shallow-frame companion, matching the Essential 70mm tilt & turn for openings that need a simple outward-swinging vent without the deeper jamb.

Our minimum-sightline tilt & turn platform, in two structural depths. F0 is the shallowest section we offer: the frame is designed to disappear into the surrounding construction, leaving glass as the visible material while retaining the two-position European operation — specified where the drawing calls for wall-to-wall glazing and the window is meant to read as a plane, not a frame. F37 carries a slightly deeper structural section, which buys additional height and width before a mullion is required, for larger single units on the same platform. Both share the same concealed hardware and two-position operation; pick the depth your span and sightline call for.

The workhorse tilt & turn platform, in two thermally broken frame depths. 95mm is the standard depth: European two-position operation at a cost that survives a production schedule — a sensible default for hotel, multifamily and spec-home programmes. 70mm is the shallow-frame companion, for projects where the wall build-up is shallower or the budget is tighter, without giving up the two-position operation or the multi-point lock — widely used for replacement work in existing masonry openings. Tilt for secure ventilation, turn for full opening and inside-face cleaning, on either depth. Figures shown are NFRC-certified per depth; see the specification table.
